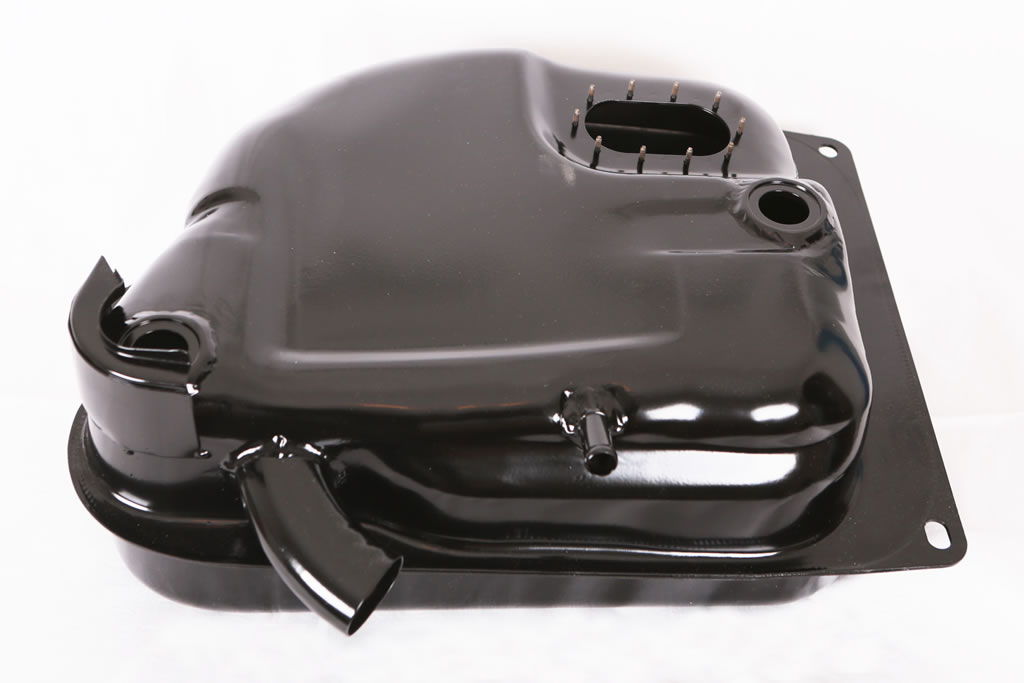

TANK FIAT PANDA 4X4 #1 INJECTION MODEL (‘91/’93 YEARS) – Code SCBO2i - high quality

TANK FIAT PANDA 4X4 #1 INJECTION MODEL (‘91/’93 YEARS) – Code SCBO2I - Without Plug - High Quality TANK FIAT PANDA 4X4 #1 INJECTION MODEL (‘91/’93 YEARS) – Code SCBO2I - With Plug - High Quality

The intermediate model is for those users who don’t want to invest a large sum of money to buy a Panda tank, but want a quality product that offers them the necessary security.

Our intermediate model therefore offers, in addition to convenience, Italian quality standards, differing from the top-range models exclusively for the sheet thickness, that passes from 15 to 12/10, and for the fact that the galvanizing is only within the tank . In any case, outside powder coating was kept.

As proof of the above, we offer on our intermediate product a ten-year warranty. The first injection model is made for cars manufactured by Fiat in the years 1991-1993. It is also compatible with the Autobianchi / Lancia Y10 4x4.

This model of tank is equipped with oval connection for oval shaped fuel suction pump and the fuel inlet tube, which connects to the rubber sleeve, it is also oval shaped.

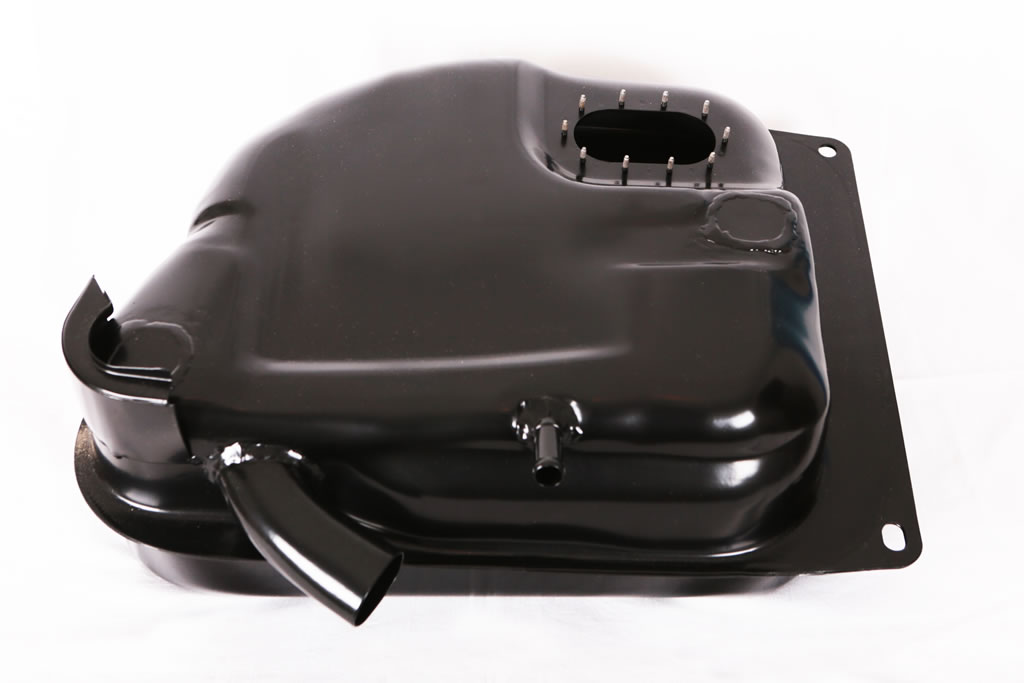

We produce the same tank in corked variant also; this is particularly helpful if the petrol vapors’ recovery valves were damaged: in fact with the corked tank the problem is surpassed and the mechanic, during the assembly phase, is appreciably facilitated in his work.

All our Panda intermediate model tanks are printed in high quality metal sheet, internally galvanized and with a thickness of 1.2 mm (compared to 8 tenths thickness of the original Fiat tank).

They are welded using a welding roller machine controlled by a PLC; after welding operations, in obedience to our high quality standards, they are pressed at 1 bar (atmosphere) and controlled in a water tub, because each tank made by CTR must be 100% guaranteed.

We use powder painting, which is the best protection for a tank whose position is facing the ground and next to the wheel.

Due to the high quality of the product, the warranty that we provide is not less than 10 years. However, it does not cover any damage caused by impacts.

Our tank is, in the shape as in the dimensions, absolutely identical to the original model, which has been faithfully reproduced; This guarantees a smooth and perfect installation.

In addition to the purely commercial one, our mission is to provide a tank that, due to the nature of the fluid which must contain, has an absolutely unobjectionable level of security.

The manufacture of our tanks is visually remarkable also thanks to the stamping of superior quality. The product is always available. The delivery time is 24 to 48 hours according to the destination.

€ 380,00

Recommended to private customers.
For spare parts dealers price and workshops price please contact C.T.R. s.a.s
